Using Solibri with Aconex

Use Solibri to check models for both clashes and for quality issues.

Solibri is used for Model Checking and the resulting issues are shared with the project team members through Aconex. It also checks models for qualitative issues such as:

  • Are there enough meeting rooms in the building?
  • Is every area within a building close enough to a fire escape?
  • Are the doors wide enough to allow for wheelchair accessibility?
For more details on using the BCF Live Connector, see Collaboration with BCF.

Connecting to Aconex using the BCF Live Connector

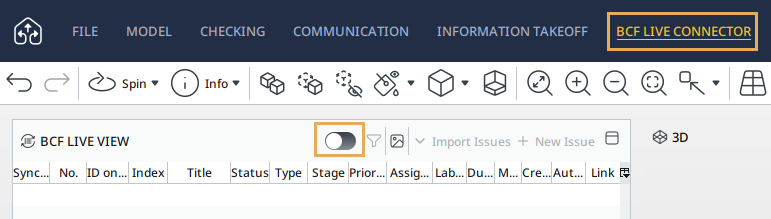

  1. Go to the BCF Live Connector tab in the header.
  2. In the BCF Live View panel, click the toggle switch to open a list of BCF servers and projects.

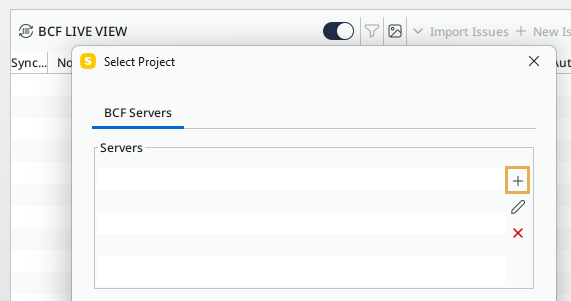

  1. Click the ‘+’ button to add an Aconex server.

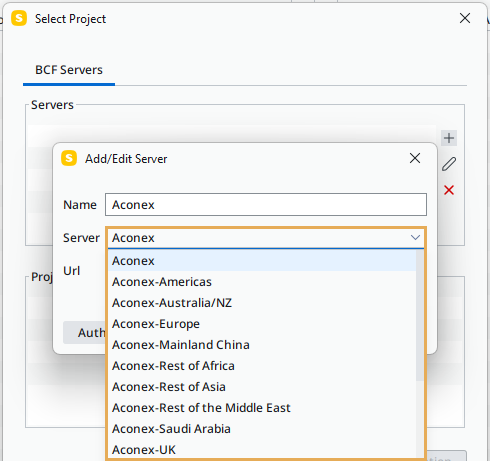

  1. In the Add/Edit Server dialogue box, click on the Server drop-down menu to view the available servers.
Available Aconex servers:
  • Aconex Americas
  • Aconex Australia/NZ
  • Aconex Europe
  • Aconex Mainland China
  • Aconex Rest of Africa
  • Aconex Rest of Asia
  • Aconex Rest of the Middle East
  • Aconex Saudi Arabia
  • Aconex UK

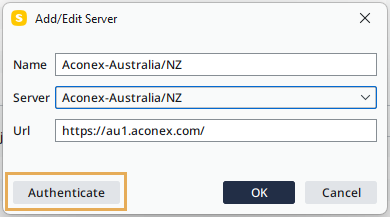

  1. Click Authenticate to connect to the server.
  1. When you select a server in the Select Project panel, a list of projects will show.
  2. Select a project and click Start Synchronisation to synchronise issues with the project.

Tips for syncing issues with Aconex

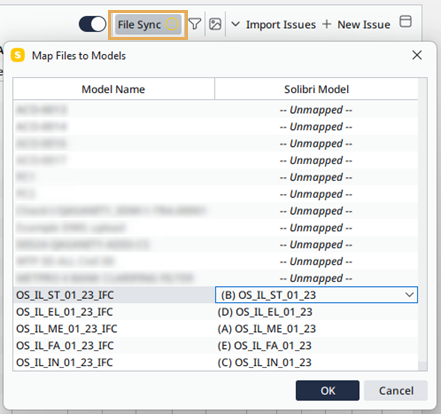

Use the File Sync feature in the BCF Live View panel to map the models that are open in Solibri to the models in Aconex.

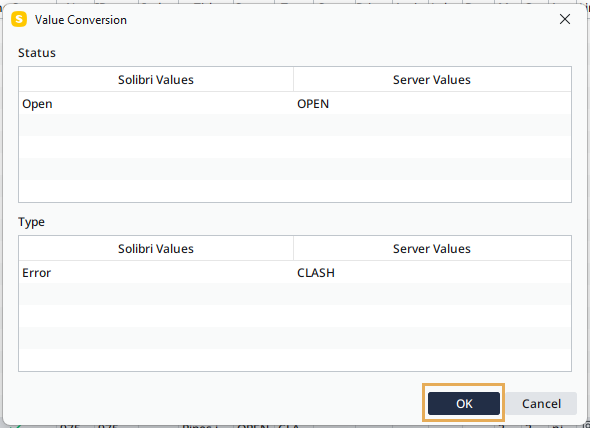

Before syncing an issue, Solibri may prompt you to convert field values to Aconex values (server values). Review and adjust these conversions as necessary, then click OK to continue.
