Scan for Hotspots and identify Assets in your Smart Manual

Scan Drawings for hotspots

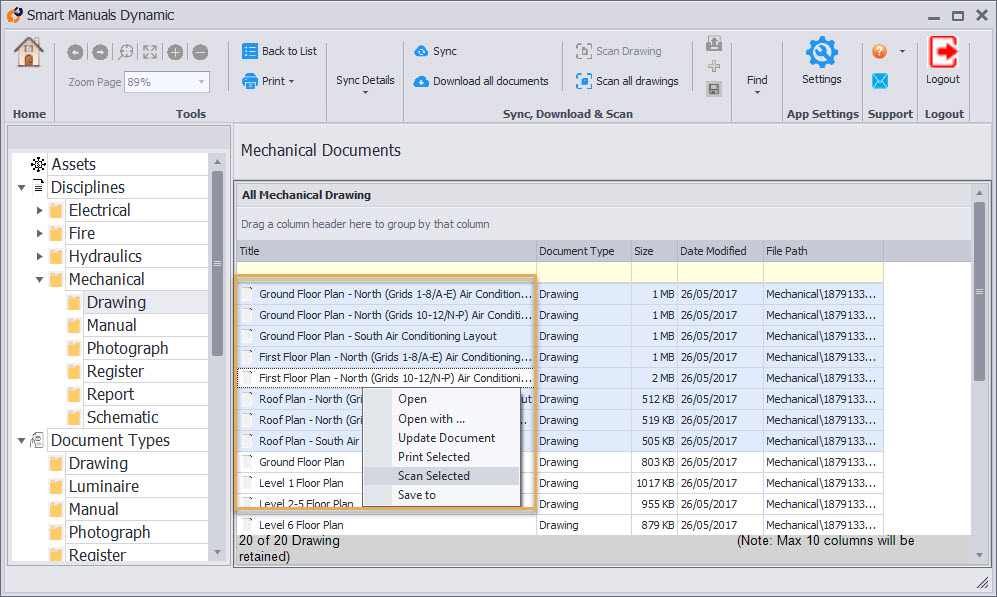

1. Select one or multiple documents in the list,
2. Right-click and select Scan Selected.
3. Smart Manuals will scan the selected document(s) for assets and create hotspots.

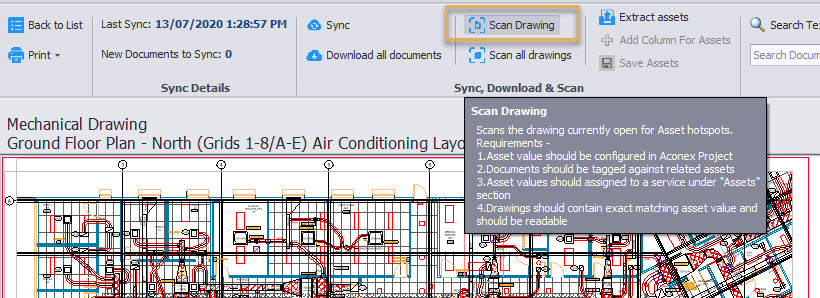

Scan a single Drawing for hotspots

1. Scan a single drawing by selecting the Scan Drawing button.
2. This will scan the selected document for assets and create hotspots.

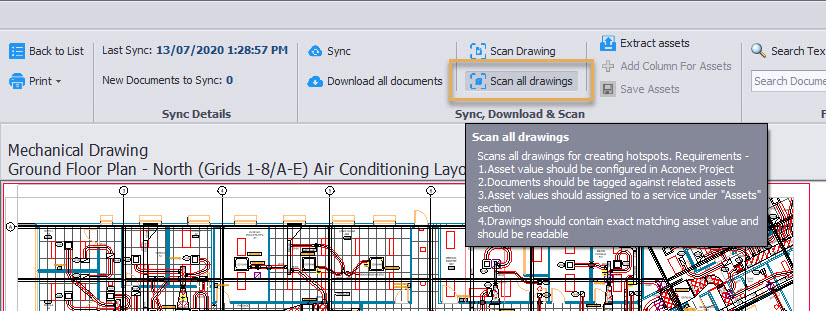

Scan All Drawings

1. Scan all the drawings in the manual by selecting Scan All Drawings.
2. This will scan the all the downloaded document for assets and create hotspots.

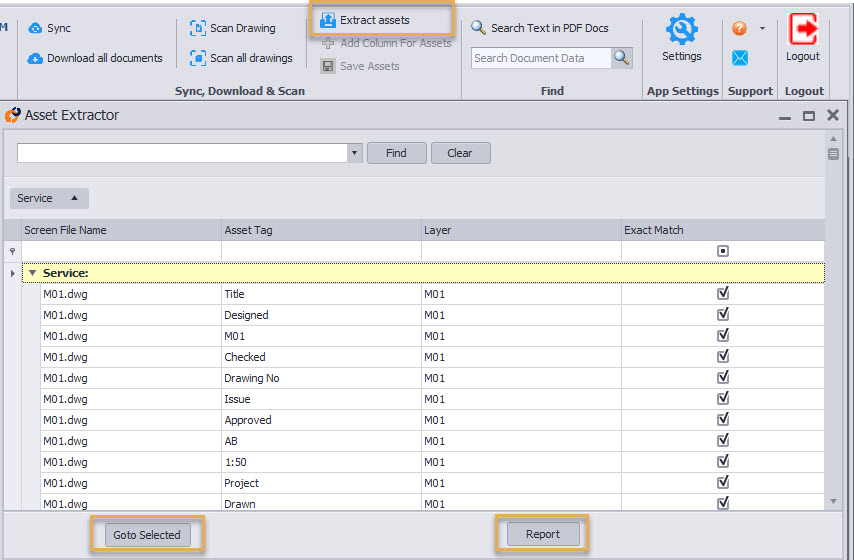

Identify and Extract Assets

Use this option to detect potential Assets in your Drawings which you can then configure as Hotspots.

1. From an opened drawing select Extract Assets.
2. This produces a list of scannable text in your Drawing, which can be configured as hotspots.
3. You can scroll the list of identified assets and click Go To Selected yo view its location in the drawing.
4. Click Report to produce a printable version of the identified asset list.
