Sectioning in Models for Mobile

View the internal objects and parts of a model using sections.

Use sections to hide parts of a model to give you a clearer view of the area you’re interested in. For example, you might want to see the interior of a room. You can achieve this by creating a section that cuts through the building to show its interior. You can use multiple sections (up to six). Sections are not permanent and are removed when you close a model. If you need to save them, you can do so by taking a screenshot.

Creating a section

  1. Open a model in the stack.

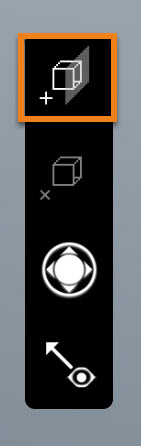

  2. Click Section icon.
  1. Tap the screen or drag over the model to create the section. This automatically shows the blue arrow you use to move the section if required.

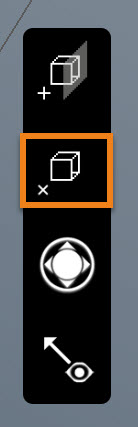

  2. When you do this the clear all sections icon appears.

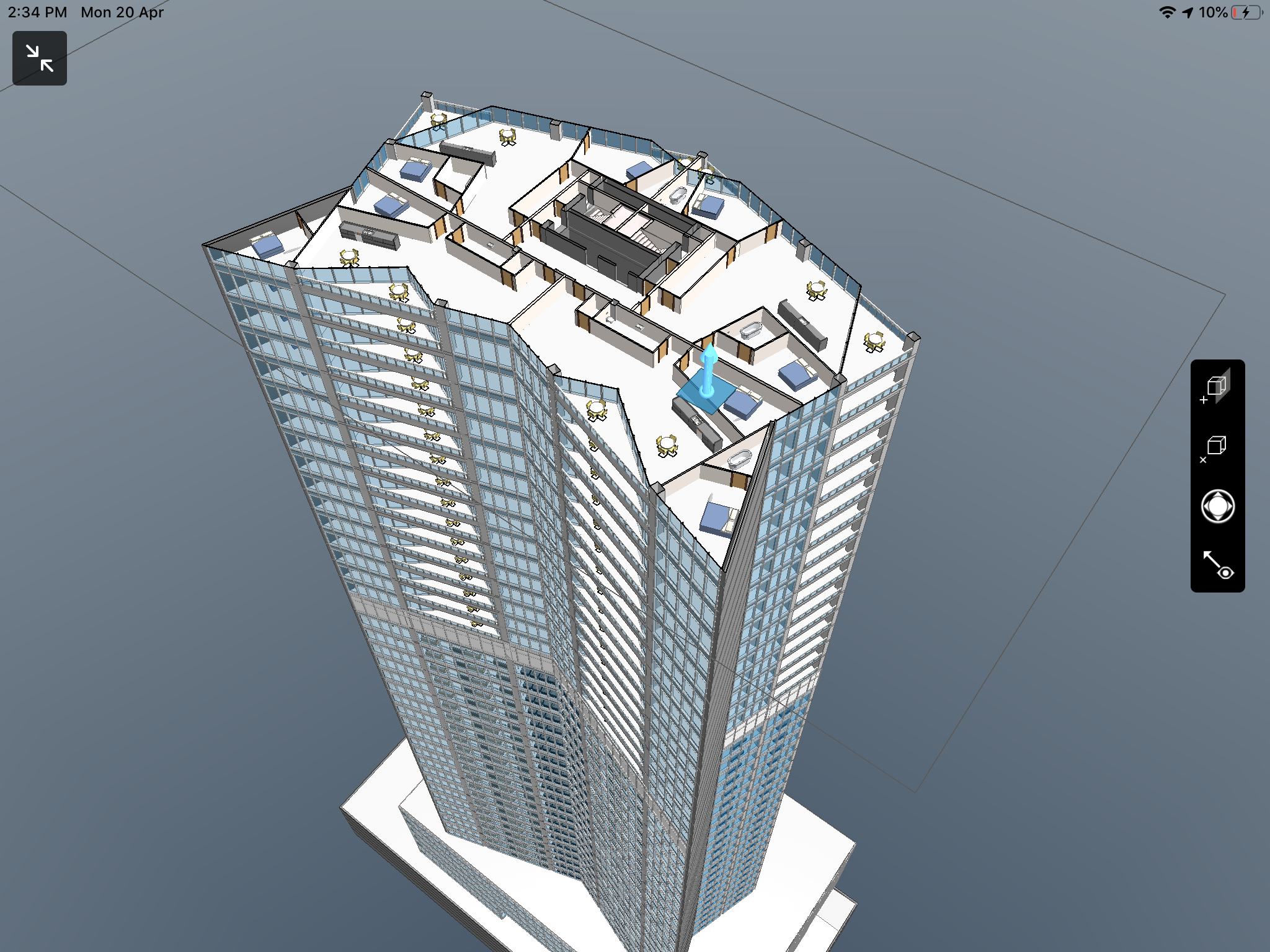

  1. Move the section back or forward using the blue arrow.



  1. To move it again you have to tap the blue section icon, then select Move to see the arrow again.

Delete a section

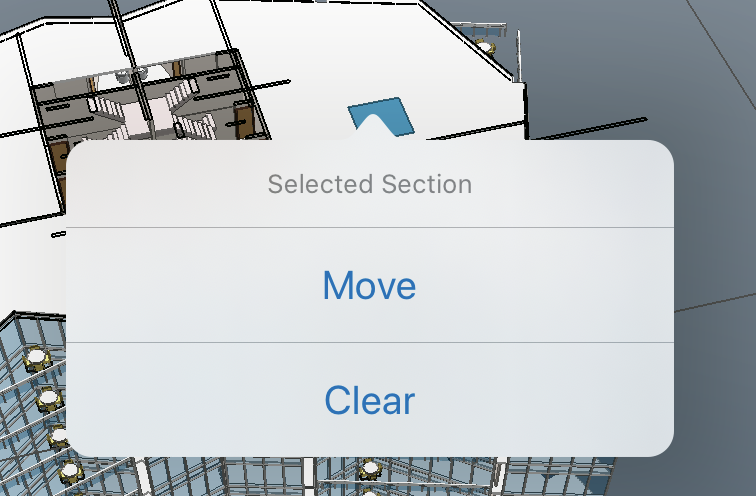

  1. To remove a section, either tap the section then select Clear, or tap the clear all sections icon and select Yes.
