Models Dashboard

When you open Models/Dashboard you will see the screen is made up of two areas:

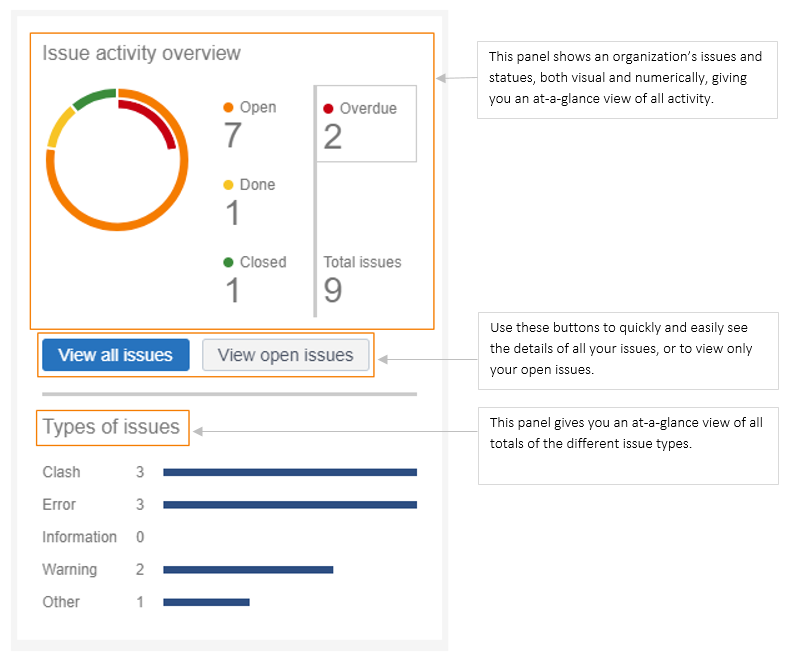

The left side shows an overview of a project’s design issue activity by:

• project activity – a summary of all the issues on your project by status and type:
  • includes a button to View all issues with a status of Open, Done and Closed
  • includes a button to View open issues

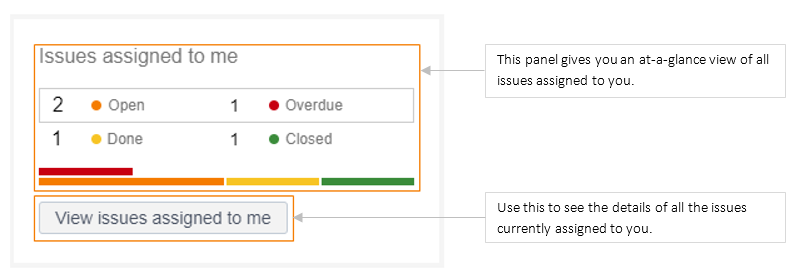

• issues assigned to me – a summary of all the issues that need your attention:
  • includes a button to View issues assigned to me

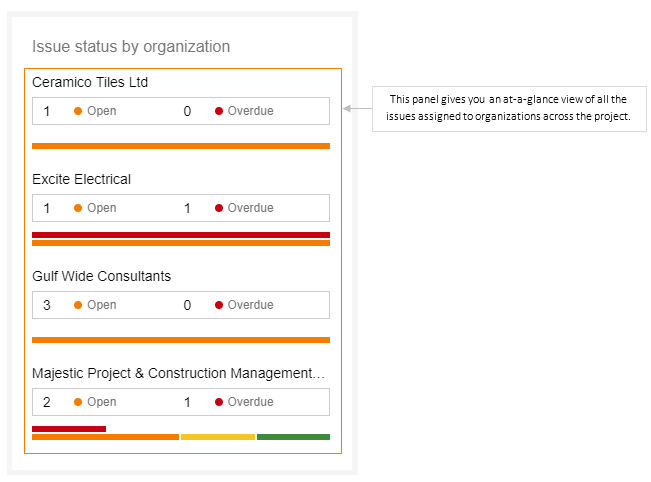

• issues organization to organizations – allows you to view Issue status by organization
  • includes a button to View issues assigned to my organization

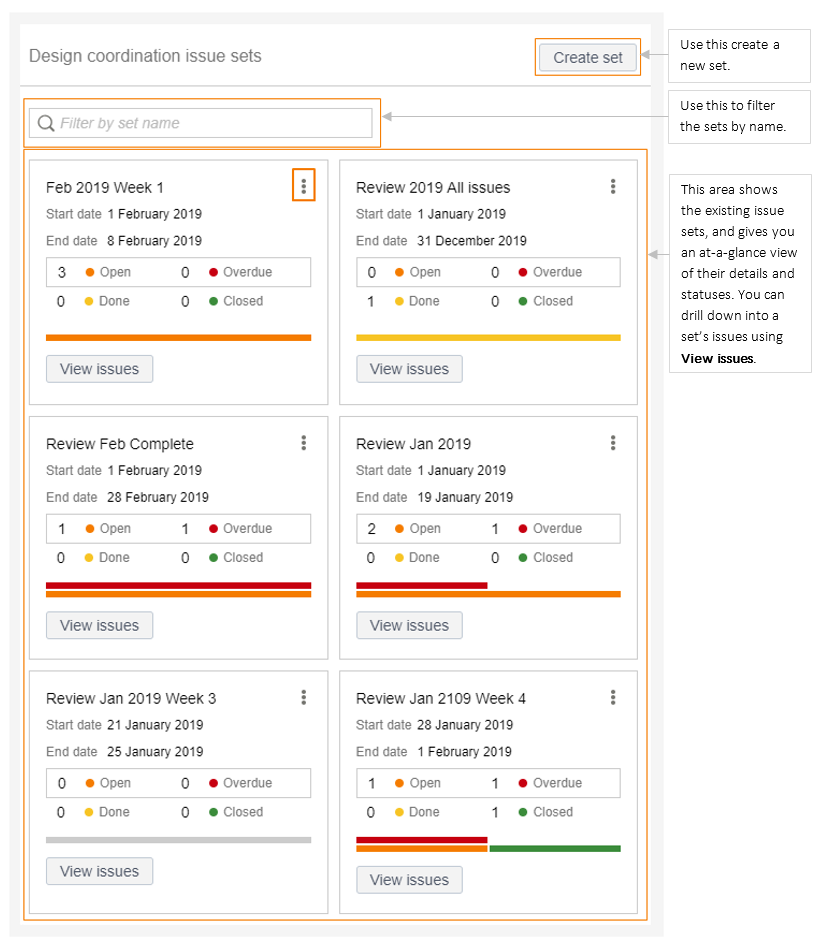

The right side provides an overview of the design Coordination sets:

• shows an overview about issue sets:
  • Includes a button on each set to View issues
• is where issue sets are created and edited
• is where you can drill down into a set’s issue details.
