Configuring Model Stack Fields

Configure the information that's shown for each model in the models list.

If you’re a BIM coordinator or project administrator and involved in configuring the information structure on a project, you can set up model stack fields to display the information that’s important to your project.

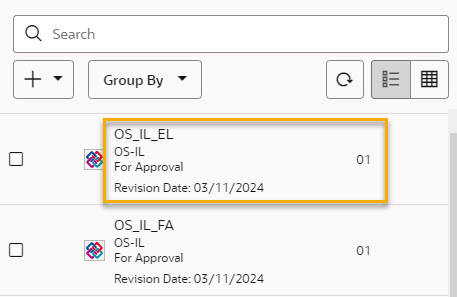

Models added from the document register appear in the models list on the left of the screen shown below. By default, there are six information fields that help you identify these documents. These are:

  • Document number
  • Title
  • Discipline
  • Revision
  • Status (only available in table view)
  • Revision date.

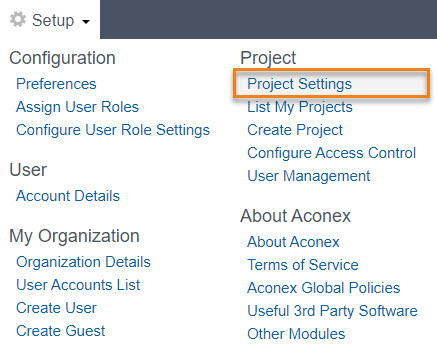

  1. If you’re a Project Administrator, go to Setup/Project Settings.

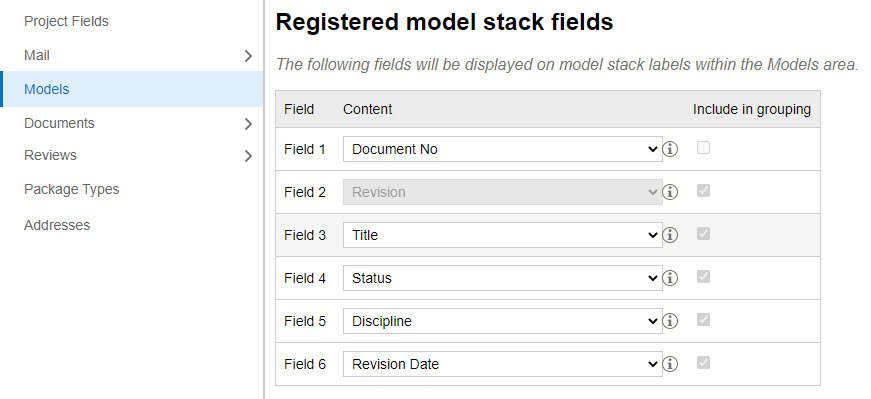

  1. Now select the Models. Under Registered model stack fields, you can see the six fields you can change.

Note that the :

  • first field can only be the title or document number.
  • second field, Revision, is locked, as this always has to be displayed.
  • last field is always a date.

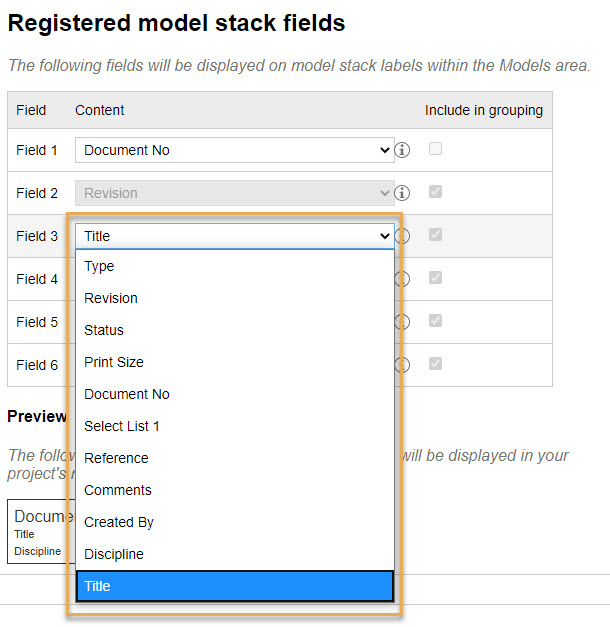

  1. Now, click the Content drop down menus and select the fields you want to use.

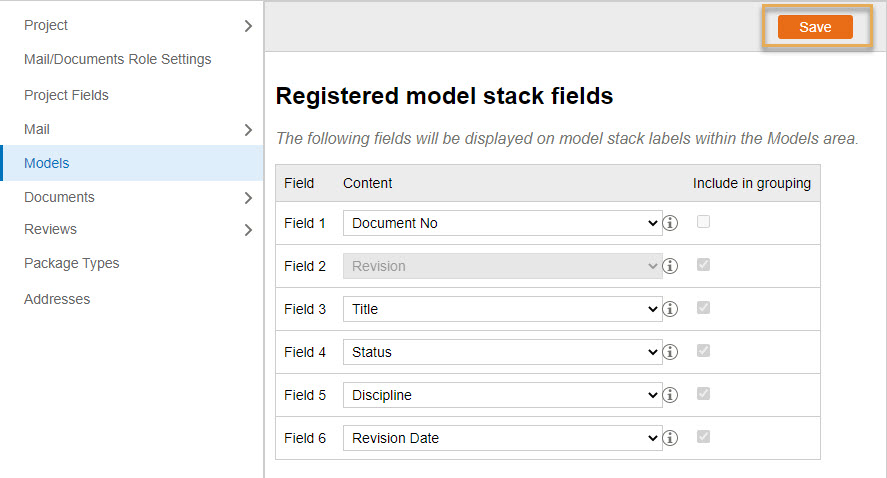

  1. Press Save when you’ve finished. The next time anyone views the models list, they’ll see that those six fields have been changed.
