View Primavera Cloud schedule activity in Packages

Required permissions

Edit project settings

Create a Package

See your Oracle Primavera Cloud schedule data directly in Aconex.

Package users can:

reference the planned finish date from the schedule to align the delivery date of the package.
view schedule changes as they occur.
understand dependencies between schedule and packages.

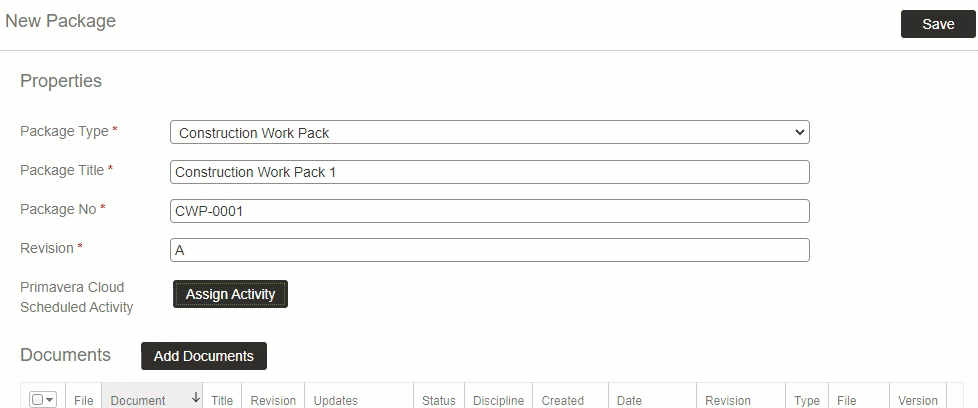

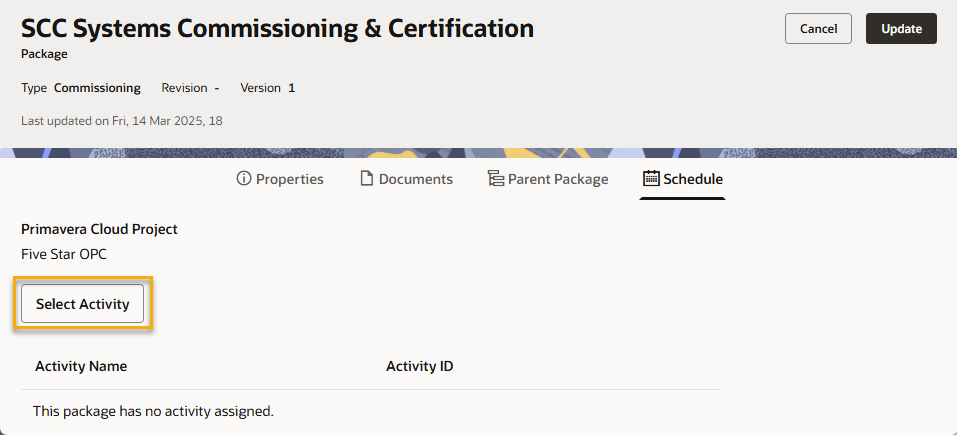

When you've connected your Aconex and Primavera Cloud projects, you'll see a new Schedule project field. This system defined project field can then be added to individual package types. You can then assign a schedule activity to a package.

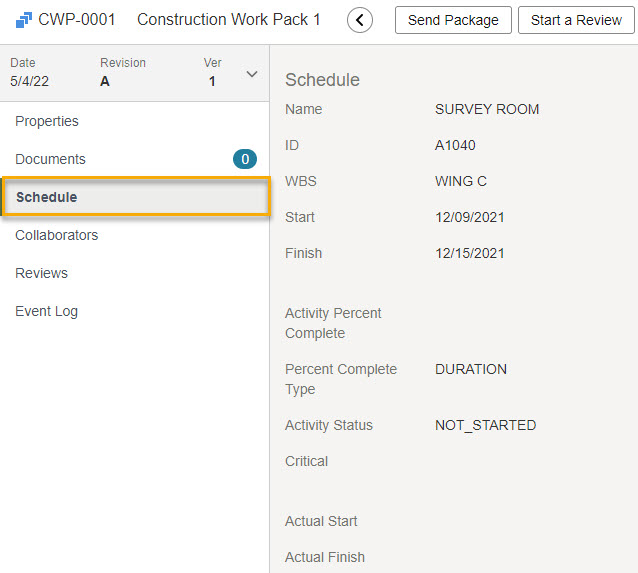

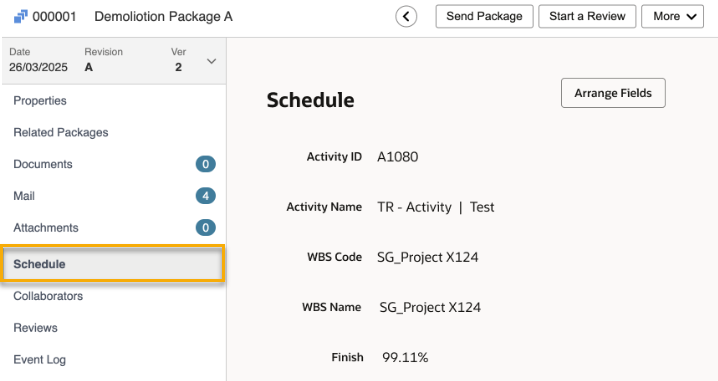

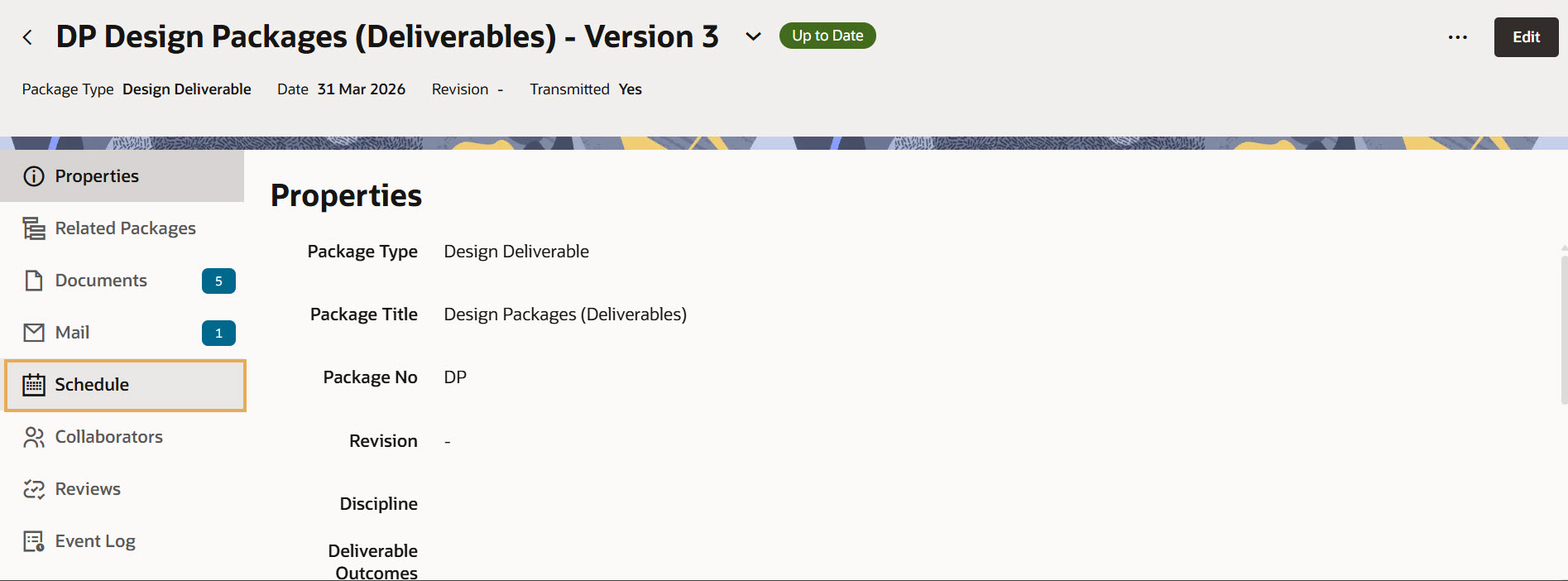

Schedule activity displays in the schedule tab of the package. This data is read-only (updated from Primavera Cloud) and refreshes each time you open the schedule screen.

Requirements

The project in Aconex and Primavera Cloud (OPC) must be linked in the Lobby.
Confirm your organization owns the project.
You must be an Editor to assign schedule activity to packages you didn't create.

Step 1. Connect your project

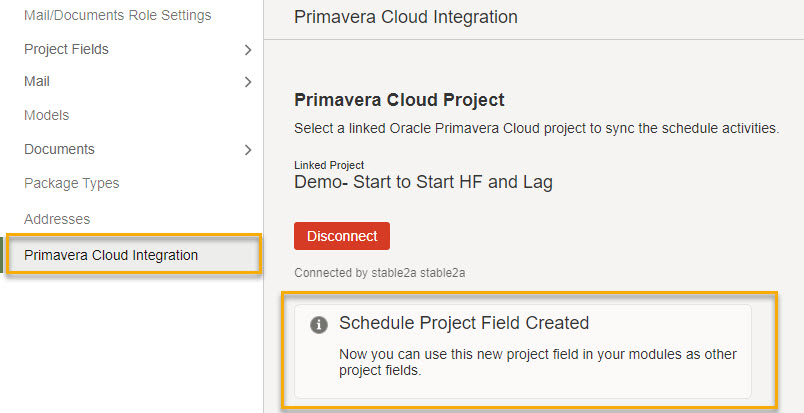

From Setup > Project Settings select Primavera Cloud Integration.
Select the project you want to display schedule activity from and click Connect.
If you don't see this option you'll first need to link your projects via the Lobby.
Enter your Primavera Cloud (OPC) username and password.
If successful you'll see a message that the schedule project field has been created.

Step 2. Enable Schedule data for a package type

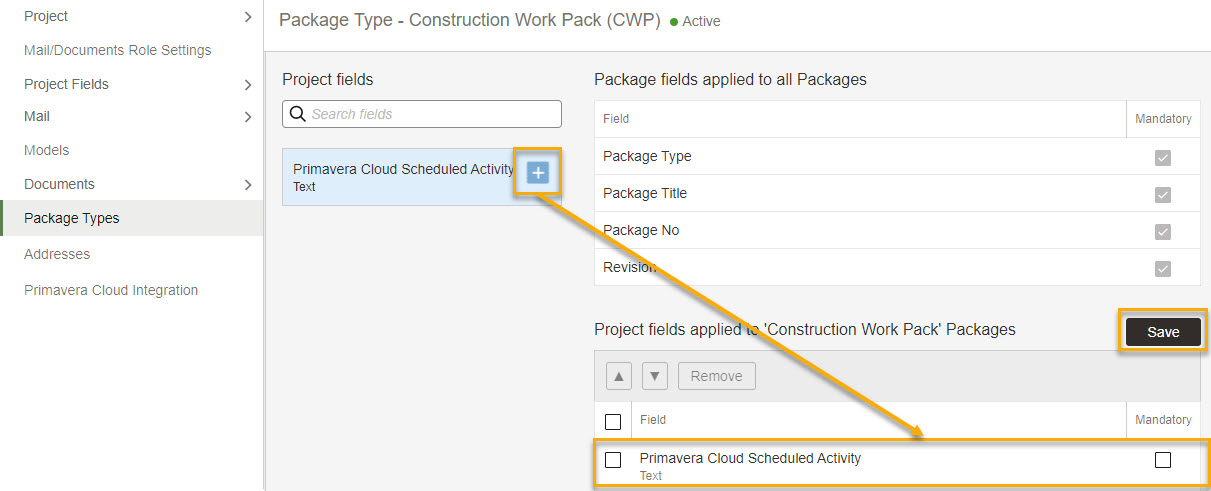

From Setup > Project Settings > Packages, select Package Types.
Select the package type you want to display schedule activity.

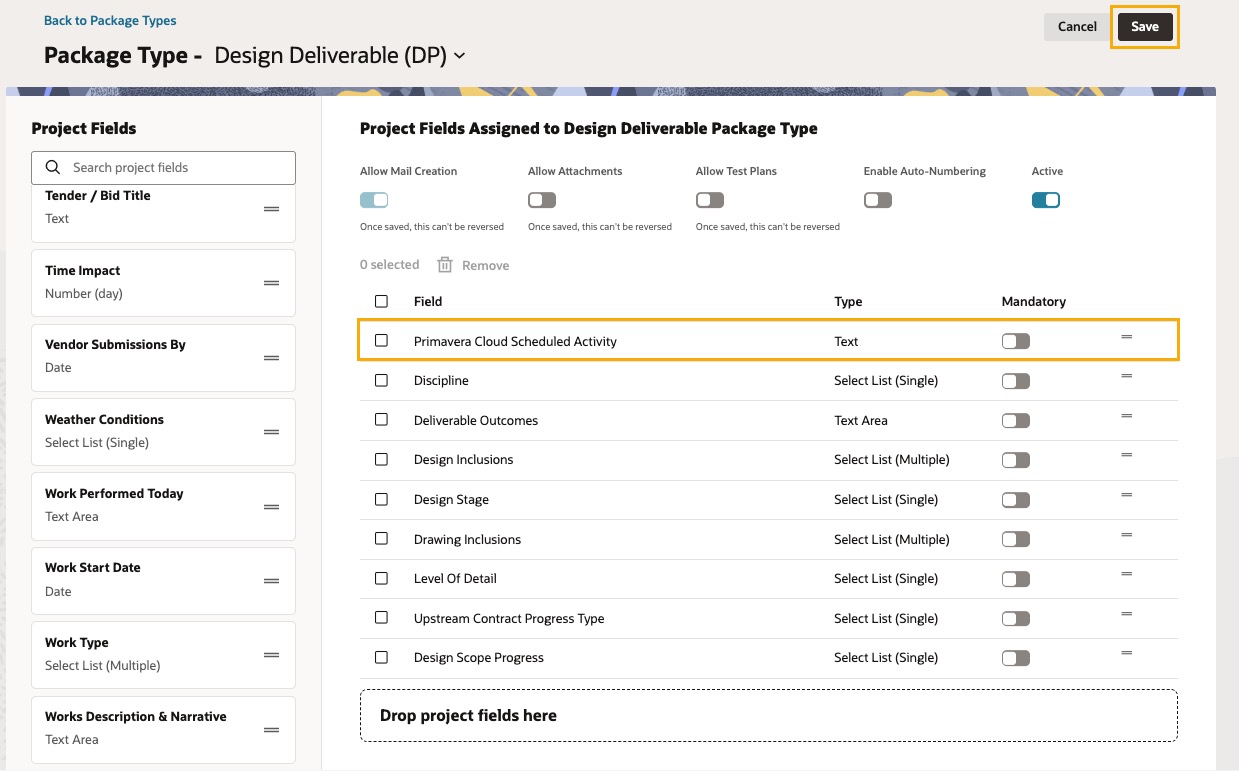

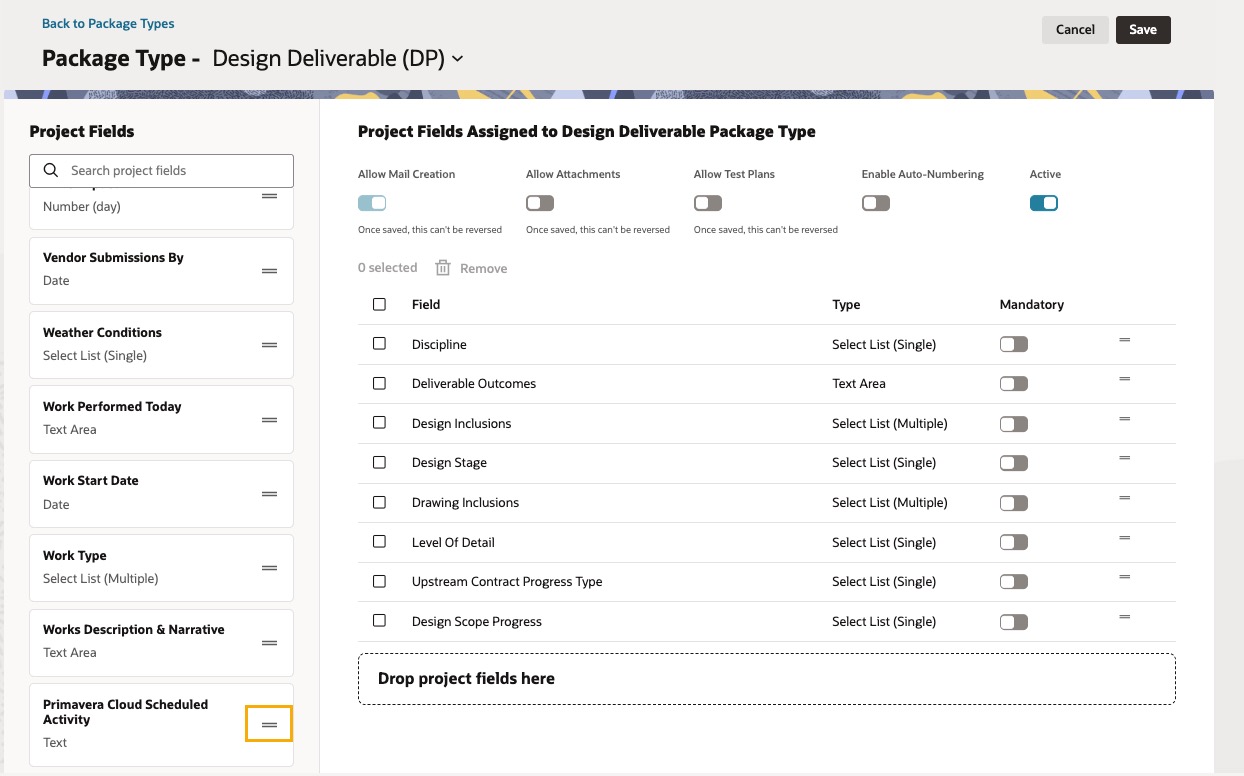

Click the + on the Primavera Cloud Scheduled Activity project field. It will be added to the list of applied project fields.
Click Save.
